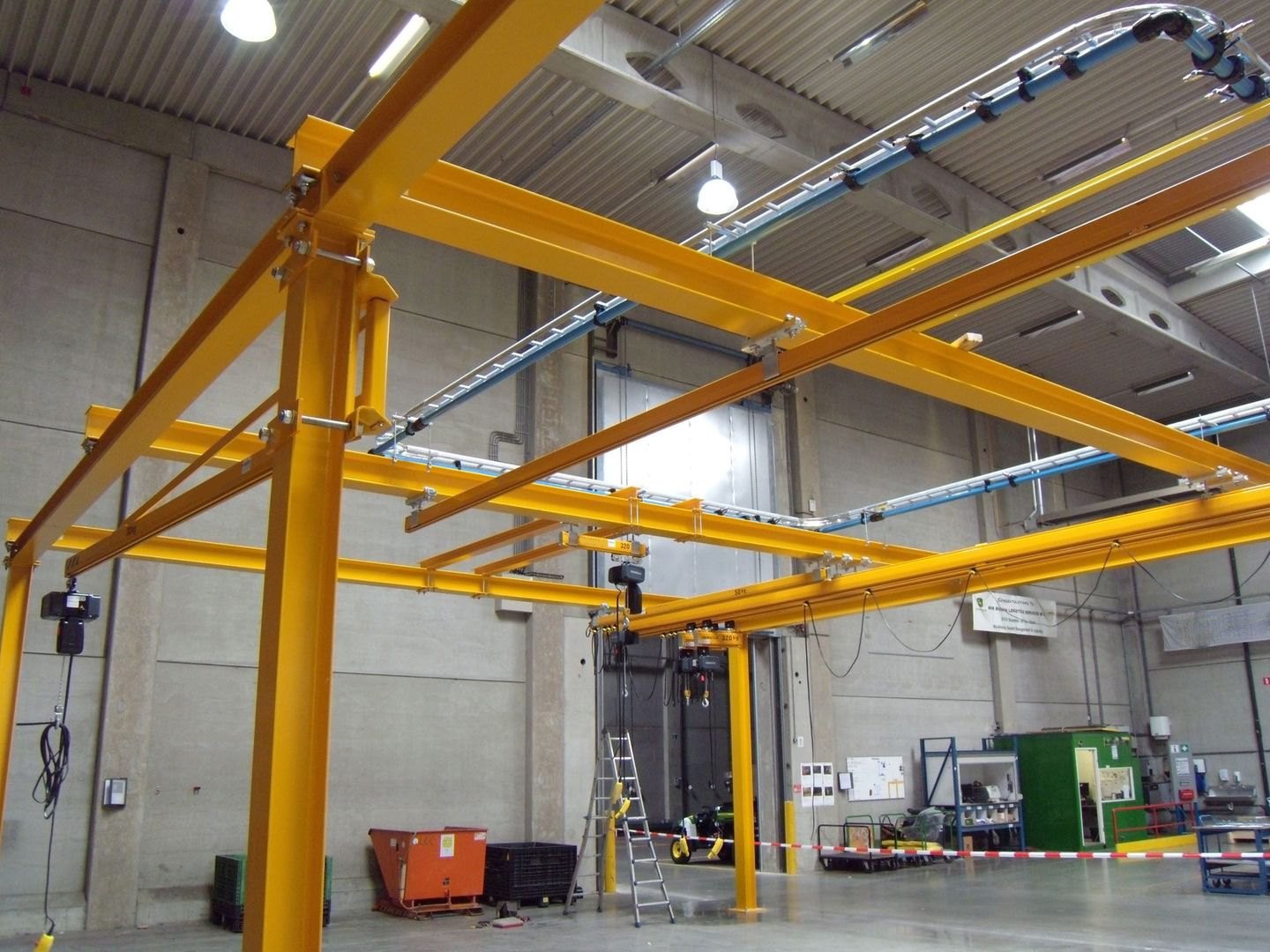

KBK Single Girder Workstation Bridge Crane

In modern intelligent manufacturing and refined operation environment, in order to meet the production line's demand for efficient, precise and flexible material handling, we launched the KBK single girder workstation bridge crane, which is a lightweight intelligent crane system based on the combination of aluminum alloy profile rails (KBK rails) and high-strength steel single-beam main beams, tailored for various "workstation" scenarios such as assembly, inspection, sorting, spot welding, etc.

Core performance parameters

  ● Rated load: 0.25~2 tons (customizable to 5 tons)

  ● Operating speed: 0~20m/min (stepless frequency conversion speed regulation)

  ● Positioning accuracy: ±1mm (manual mode)/±0.5mm (automatic mode)

  ● Rail system: single rail/double rail optional, maximum single rail length 100m

  ● Certification standards: TUV, CE, ISO 4301

Core features of KBK workstation bridge crane

  ● The main beam adopts high-strength carbon steel or aluminum alloy composite structure, combined with KBK aluminum profile rails, effectively reducing the weight of the equipment.

  ● Standardized KBK rail parts are assembled with main beams, end beams, footrests, and connectors to meet the flexible needs of small-batch production.

  ● Intelligent trolleys driven by DC motors or servo motors can achieve precise positioning, adjustable speed, and smooth start and stop.

  ● Supports rapid replacement of a variety of special lifting devices (pneumatic grippers, vacuum suction cups, magnetic lifting devices, etc.).

  ● Fully equipped with overload protection, emergency stop switches, travel limits, anti-collision sensors, and dual speed limits for software and hardware.

Typical application scenarios

  ● Assembly workstation: On the assembly lines of electronics, home appliances, and automotive parts, accurate distribution of parts from the material warehouse to the assembly station is achieved.

  ● Testing bench: Automatically transport workpieces from the production line to the test bench to achieve material handling in batch and automated testing processes.

  ● Warehousing and sorting area: Combined with AGV or conveyor lines, medium-weight goods are seamlessly moved between sorting areas.

If you are looking for flexible and efficient workstation material handling solutions, please contact Unimax Crane, we will provide you with products that meet your needs and preferential prices.
