7.5T SHENGYIN Low Headroom Crane Chain Electric Hoist

7.5t SHENGYIN low headroom crane chain electric hoist is a high-performance lifting solution designed specifically for environments with limited overhead space. This hoist combines robust construction, advanced safety features, and efficient operation, making it an ideal choice for a wide range of industrial applications.

Main components of SHENGYIN electric chain hoist

  ● Shell: Light aluminum alloy shell shall be adopted which is light but hard and fit for the use in theterrible work environment with a high heat dissipation rate and all tightness design.

  ● Inverse phase sequence protecting device: It is the speclal alectrical installation which control thecircuit not to work in case of wiring amor in the power supply.

  ● Limit switch: The limit switch device is installed where the weight is lifled on and off to make themotor to stop outomatically so as to prohibit the chains from axceeding for safaty.

  ● 24V/36V device: It ls used to prohibit the amergancles from occuring in case of the leakage inthe switch.

  ● Side magnetic braking device: This device shall realize the instant brake in case of the power dump.

  ● Chain bag: It shall be light, handsome and durable.

  ● Chain: The chain shall adopt the imported FEC80 ultra heat-reatable aluminum alloy chain.

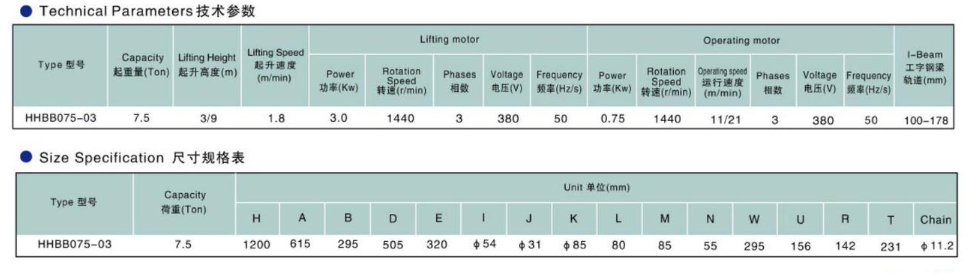

Technical Parameters

If you have any customization requirements or technical consultation, please feel free to contact us. We will provide you with professional solutions and comprehensive after-sales support.
